Construction & Material :
| Item | Unit | Specification | ||||
| Conductor | Size | AWG | 40 | 32 | ||
| Material | -- | Tinned Sn-Cu | Tinned Copper | |||
| Construction | pcs / mm | 7/0.03±0.003 | 7/0.08±0.005 | |||
| Insulation | Material | -- | PFA | FEP | ||
| Min.thickness | mm | 0.05 | 0.056 | |||
| Diameter | mm | 0.24±0.03 | 0.38±0.03 | |||
| Color | -- | Black | Blue Yellow Green | |||
| Spiral Shield | Material | -- | Tinned Copper alloy | |||
| Type | -- | Spiral | ||||
| Cu-Mylar Shield | Material | Copper Mylar | ||||
| Type | Wrapping | |||||
| Jacket① | Material | -- | PET | |||
| O.D. | mm | 0.35±0.03 | ||||
| Color | -- | Blue Red Gray Yellow Orange Black White Brown Green Pink Sky-Blue | ||||
| Cabling① | Construction | -- | 32*2C+F+40#*8C | |||
| filler | Material | -- | Cotton | |||
| Cabling② | Construction | -- | (32*2C+F+40#*8C)+40#*11C+32#*1C+2D(30# 7C) | |||
| Drain Wire | Material | -- | Tinned Copper | |||
| Construction | pcs / mm | 7/0.10±0.008*2PS | ||||
| Taping ① | Material | PET | ||||
| Overlap | ≥25% | |||||
| Taping② | Material | AL-Foil / Mylar | ||||
| Overlap | ≥25% | |||||
| Braiding | Material | Tinned Copper | ||||
| Construction | pcs/mm/c | 12/0.05/16 | ||||
| Coverage | % | ≥85% | ||||
| Jackact② | Material | -- | PVC | |||
| Nom.thickness | mm | 0.8 | ||||
| Diameter | mm | 4.0±0.1 | ||||
| Color | mm | Black | ||||
| Marking | No Marking | |||||
Electrical&Physical Property :
| Item | Unit | Specification | ||||
| Conductor Resistance | Ω/kM(20℃) | Max 40#:5000 36# : 1500 32#:563 | ||||
| Insulation Resistance | MΩ-km(20℃) | Min. PFA:1000 FEP:1000 PVC0.75 | ||||
| Dielectric Withstand | 500 VAC/1min | NO Breakdown | ||||
| Characteristic impedance | Ω | 40# Coaxial 50±5 | ||||
When using the same axis, please use the following matching：
| inner layer | black/white、blue/red、green/brown、gray/yellow | |||||
| outer layer | black/white、orange/pink、blue/red、green/brown、gray/yellow | |||||

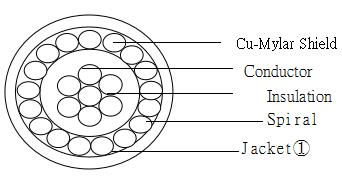

Cross-Section View :(Coaxial Cable)

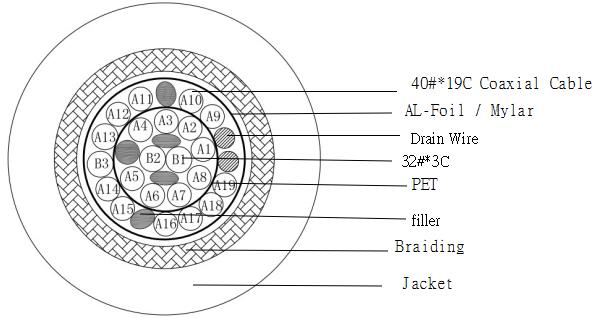

Cross-Section View :(end product)
Color of jacket:
| Unit NO. | Color | Unit NO. | Color | Unit NO. | Color |
| A1 | Black | A10 | White | A19 | Sky-Blue |
| A2 | White | A11 | Red | B1 | Blue |
| A3 | Red | A12 | Blue | B2 | Green |
| A4 | Blue | A13 | Yellow | B3 | Yellow |
| A5 | Yellow | A14 | Gray | ||
| A6 | Gray | A15 | Green | ||
| A7 | Green | A16 | Brown | ||
| A8 | Brown | A17 | Orange | ||
| A9 | Black | A18 | Pink |
