Construction & Material :
| Item | Unit | Specification | ||||||
| A(5C) | ||||||||
| Conductor | Size | AWG | 28 | |||||
| Material | -- | Tinned Copper | ||||||
| Construction | pcs / mm | 30/0.08+200D Kevlar | ||||||
| Insulation | Material | -- | PP | |||||
| Nom.thickness | mm | 0.26 | ||||||
| Diameter | mm | 1.1±0.05 | ||||||
| Color | -- | Red White Black Green | ||||||
| Covering | Material | -- | UPE | |||||
| O.D. | mm | 1.3±0.05 | ||||||
| Color | -- | Red Black Brown Yellow Green Blue Gray White | ||||||
| Cabling | Construction | -- | 28#*5C | |||||
| Fill | Material | -- | Cotton | |||||
| Braiding | Material | -- | Tinned Copper | |||||
| Construction | pcs/mm/c | 18/0.06/16 | ||||||
| Coverage | % | ≥90% | ||||||
| Jackact | Material | -- | PTFE | |||||
| Nom.thickness | mm | 0.70 | ||||||
| Diameter | mm | 6.0±0.15 | ||||||
| Color | -- | Gray | ||||||
Electrical&Physical Property :
| Item | Unit | A (28AWG) | ||||||
| Conductor Resistance | Ω/kM(20℃) | Max.223 | ||||||
| Rated temperature voltage | -- | 80℃ 30V | ||||||
| Insulation Resistance | MΩ-km(20℃) | Min.0.75 | ||||||
| Dielectric Withstand | 500 VAC/1min | NO Breakdown | ||||||

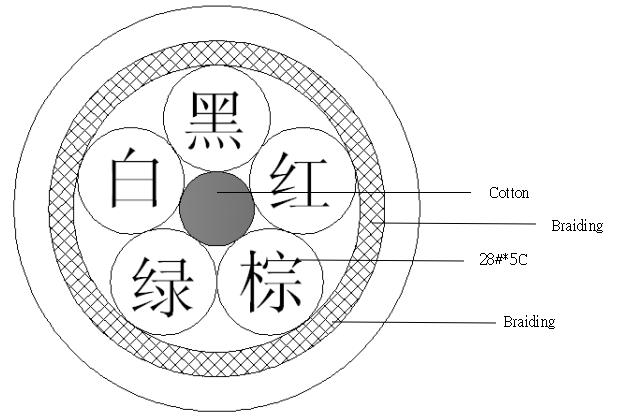

Cross-Section View :
Color of jacket:
| Unit NO. | Color |
| A1 | White |
| A2 | Black |
| A3 | Red |
| A4 | Brown |
| A5 | Green |
